Malaysia 12 inch Sand Gravel Dredge Pump Dredger Discharge 500 m

What is 12 inch Sand Gravel Dredge Pump Dredger?

Purpose: Extracting and relocating sand, gravel, slurry, sludge, and other riverbed material including some rubbish

Location: Ready to be deployed in Malaysia

Discharge distance: 500 meters

This 12-inch dredger is specifically designed to handle a variety of riverbed material, including:

Sand/Gravel/Slurry/Sludge/Miscellaneous rubbish and debris

The 12-inch size refers to the diameter of the suction pipe used to draw up this mixed dredged material from the river bed.

With its powerful pumping system, the dredger can efficiently extract this heterogeneous mix of sand, gravel, sludge, and other river waste. It can then discharge this material up to 500 meters away from the dredging site.

This versatility makes the 12-inch dredger well-suited for comprehensive river dredging and clean-up operations in Malaysia, where it can remove accumulated sediments as well as floating or submerged debris from the waterways.

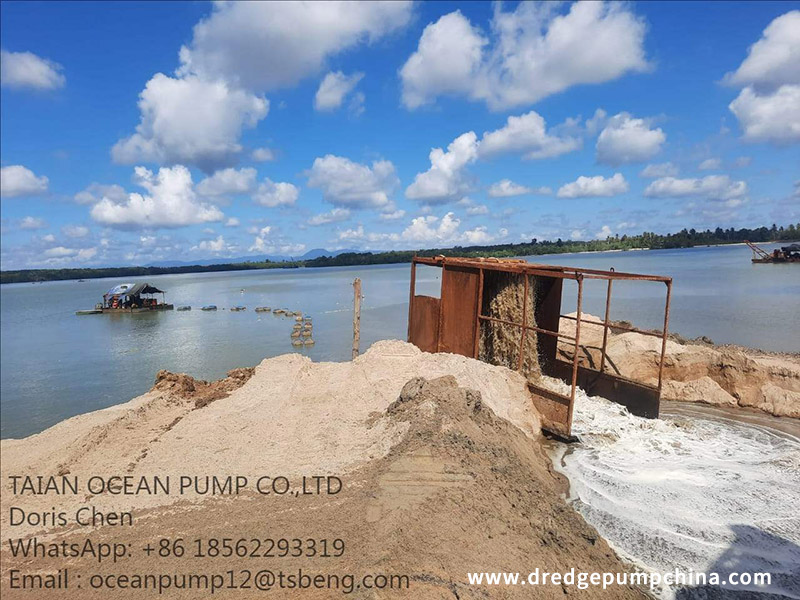

The long 500-meter discharge range also allows for efficient relocation of the dredged material to designated disposal or storage areas, without the need for multiple discharge points.

What is made of 12 inch Jet Sand Pump Dredger?

12-inch sand and gravel dredge pump dredger with a 500 m discharge capacity, ready to be utilized for river dredging in Malaysia:

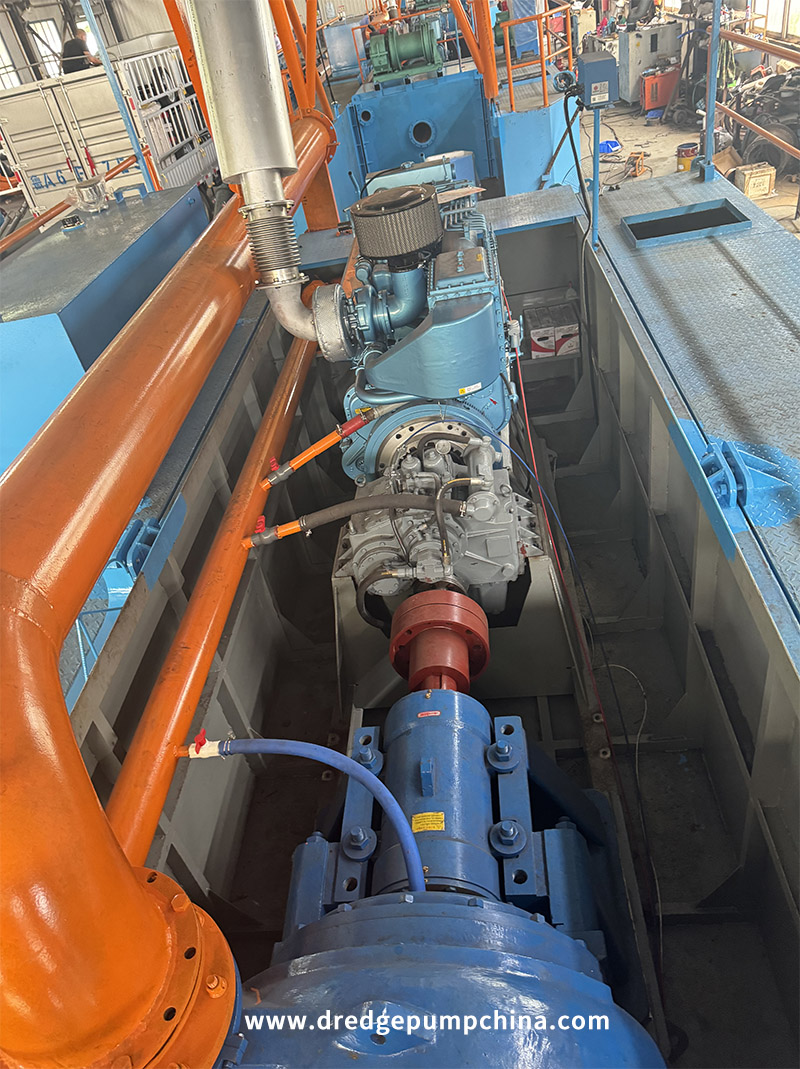

Dredge Pump:

12-inch sand dredge pump

Flow capacity: 1000 m³/h

Head: 50 m

Driven by a Weichai 620 HP diesel engine

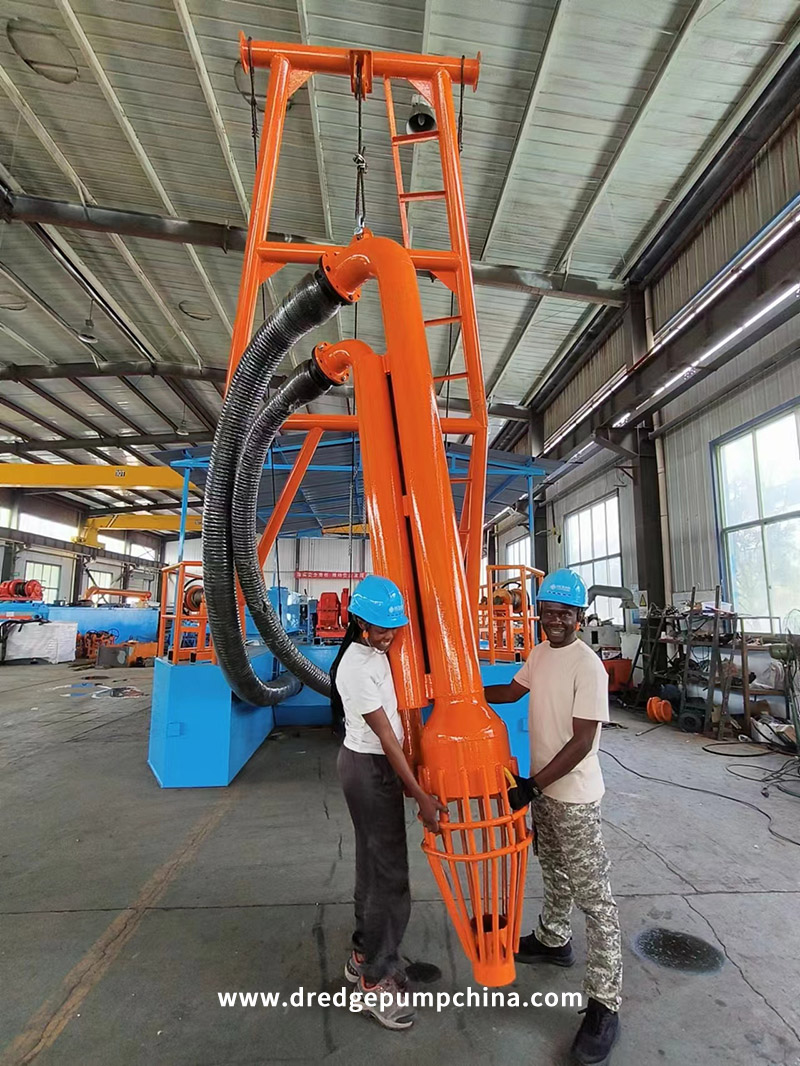

Water Jet Pump:

High-pressure water jet pump with multiple functions:

2.1. Water jet the sand layer to loosen and fluidize the material

2.2. Pre-water the dredge pump to ensure the impeller is fully primed

2.3. Water cooling for the gear box

2.4. Water cooling for the marine diesel engine

Powerful Marine Diesel Engine:

Weichai brand 6170 series diesel engine

Dredger Pontoon:

Length: 11.5 m

Provides the necessary buoyancy for the dredging system

Discharge Pipe:

12-inch diameter

11.5 m length per pipe section

Modular design for easy container loading

Steel-Wired Rubber Hose:

For the suction and water jet functions

This comprehensive dredging system, with its powerful pump, high-pressure water jet, and robust marine diesel engine, is well-equipped to handle large-scale sand and gravel extraction from river beds or other waterways. The modular design of the discharge pipe and the versatile water jet pump further enhance the system's flexibility and efficiency for various dredging applications.

River dredging is a crucial activity for maintaining waterways, flood control, and resource replenishment, and dredgers like the 12-inch model described are essential equipment for these important projects. Let me expand on the key benefits and applications of this type of dredging system:

Navigable Waterways:

Removing accumulated sediments, debris, and other obstructions from river beds helps maintain the depth and flow of navigable waterways.

This ensures reliable passage for commercial and recreational vessels, supporting economic activities along the rivers.

Flood Control:

Dredging helps increase the water conveyance capacity of rivers by removing excess sediments.

This improves flood mitigation by allowing rivers to more effectively carry high water volumes during heavy rainfall or spring runoff.

Proper river dredging can thus protect nearby communities and infrastructure from flood damage.

Resource Replenishment:

The extracted sand, gravel, and other riverbed materials can be reused for various construction and infrastructure projects.

This creates a sustainable supply of these natural resources, instead of relying solely on mining from other locations.

Replenishing these resources also helps maintain the ecological balance of the river system.

The versatility and capabilities of the 12-inch dredger make it well-suited for tackling all these critical river management objectives. Its ability to efficiently extract and relocate a wide range of riverbed materials over long distances is a key asset for these river improvement initiatives.

Overall, this type of dredging equipment plays a vital role in ensuring the health, navigability, and sustainable use of important river systems - a crucial investment for the communities and economies that depend on these waterways.

Application

The 500-meter discharge capacity of this 12-inch dredger is a major advantage that makes it a valuable asset for river dredging operations in Malaysia. Let me expand on how this long-range discharge capability benefits these types of projects:

Efficiency in Material Relocation:

With a 500-meter discharge range, the dredger can transport the extracted sand, gravel, sludge, and other riverbed materials directly to designated disposal or storage sites.

This eliminates the need for multiple intermediate discharge points, which would require additional handling and transportation steps.

The continuous, long-distance discharge capabilities streamline the overall dredging workflow and improve productivity.

Flexibility in Site Selection:

The extended discharge reach gives the dredging crew more flexibility in choosing suitable disposal or storage locations.

They are not limited to sites immediately adjacent to the dredging area, allowing them to find the most optimal sites for material handling and management.

This can be especially beneficial in areas with limited space or access constraints near the river.

Reduced Environmental Impact:

Transporting the dredged materials over longer distances to dedicated sites reduces the disruption and environmental footprint within the river itself.

It minimizes the need to repeatedly discharge along the riverbank, which can disturb aquatic habitats and ecosystems.

The centralized, long-range discharge approach helps maintain the river's natural state and biodiversity.

Cost-Effectiveness:

Reducing the need for multiple discharge points and additional material handling steps streamlines the overall dredging operation.

This can lead to significant cost savings in terms of labor, equipment, and logistical requirements.

The efficiency gains make the dredging project more economical and sustainable in the long run.

In the context of river dredging in Malaysia, this 500-meter discharge capability of the 12-inch dredger is a crucial advantage that enhances the system's versatility, productivity, and environmental compatibility. It makes the dredger a valuable asset for comprehensive river management and improvement initiatives.
