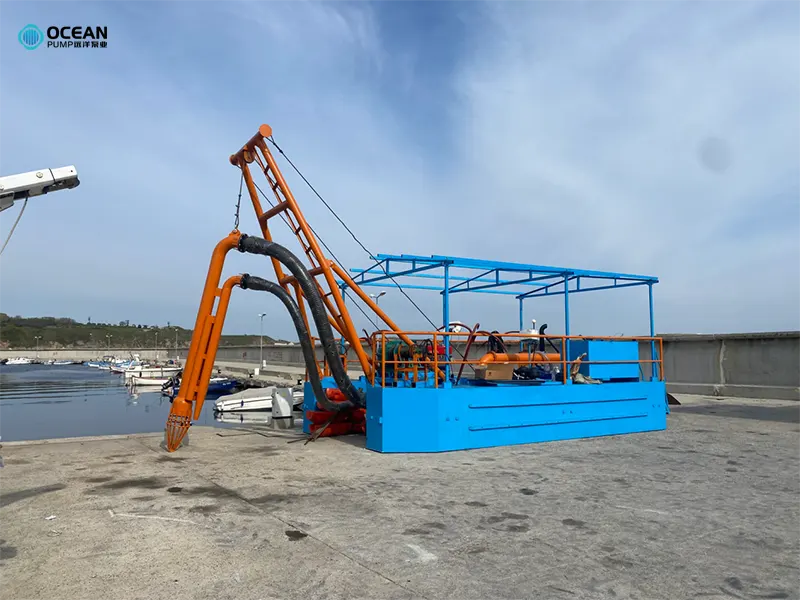

8 inch sand mining dredge shipped to Bulgaria for beach sand filling

Bulgaria is a European country with a beautiful environment. The Sofia Beach is world renowned,and Bulgaria is a famous tourist country. In recent years,the Sofia Beach has been continuously eroded by the waves,and a sand pumping ship is needed for backfilling operations to ensure that there is enough sand on the beach. A sand mining dredger is used to backfill the sand from the sea onto the shore.

1.What is Sand Mining Dredger?

A sand mining dredger is a specialized vessel or piece of equipment designed for the extraction of sand from underwater sources,such as rivers,lakes,or the seabed.

Sand mining dredgers come in various types and sizes,each tailored to different mining conditions and volumes of sand extraction. Some use suction mechanisms to draw sand up from the bottom. For example,a trailing suction hopper dredger has a large hopper on board to store the sand it sucks up. There are also cutter suction dredgers that use a rotating cutterhead to loosen the sand before suction,which is useful when the sand is compacted or mixed with other materials. These dredgers play a crucial role in industries like construction (as sand is a key ingredient in concrete),land reclamation projects,and beach nourishment efforts.

In summary,a sand mining dredger is an essential tool for accessing and harvesting sand from beneath water surfaces for a wide range of applications.

2.What is made of Sand Mining dredger?

Sand mining dredgers are specialized pieces of equipment engineered to extract sand,gravel,and other materials from riverbeds,seabeds,or other underwater locations. These machines play a crucial role in industries such as construction,land reclamation,and environmental restoration. This article provides a comprehensive overview of the main structure,working principle,types,advantages,limitations,and applications of sand mining dredgers.​

3.Main Structure of Sand Mining Dredgers​

A sand mining dredger typically comprises several key components that work in tandem to extract and transport sediment. The main structural elements are as follows:​

Hull(Floating Platform)​

The hull serves as the fundamental base of the dredger. It provides buoyancy and stability,enabling the dredger to operate in aquatic environments. Usually constructed from steel,the hull houses the engine room,operator's cabin,and other essential equipment.​

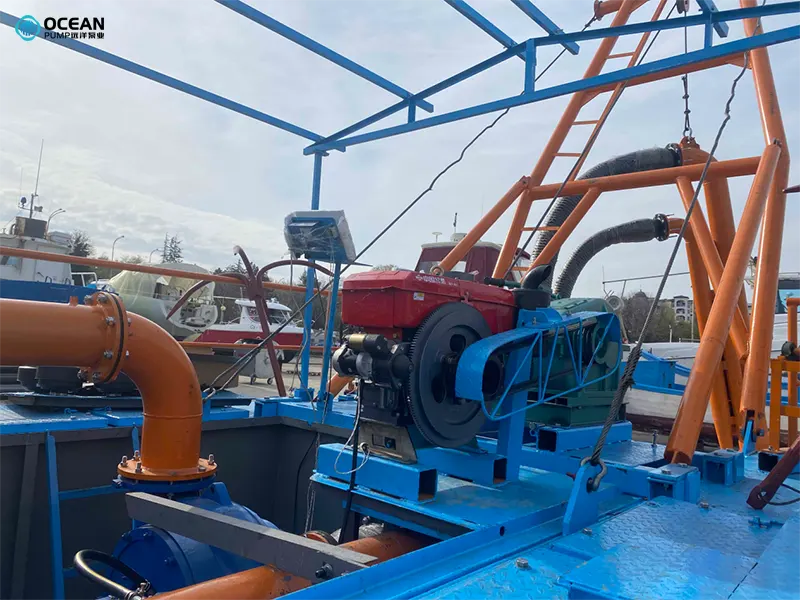

Dredging Pump​

A centrifugal pump designed to handle abrasive materials like sand and gravel. It generates the suction force required to draw sediment and water from the dredging site and transport them through the discharge pipeline. The pump is often made of wear - resistant materials such as high chromium alloys to endure abrasion.​

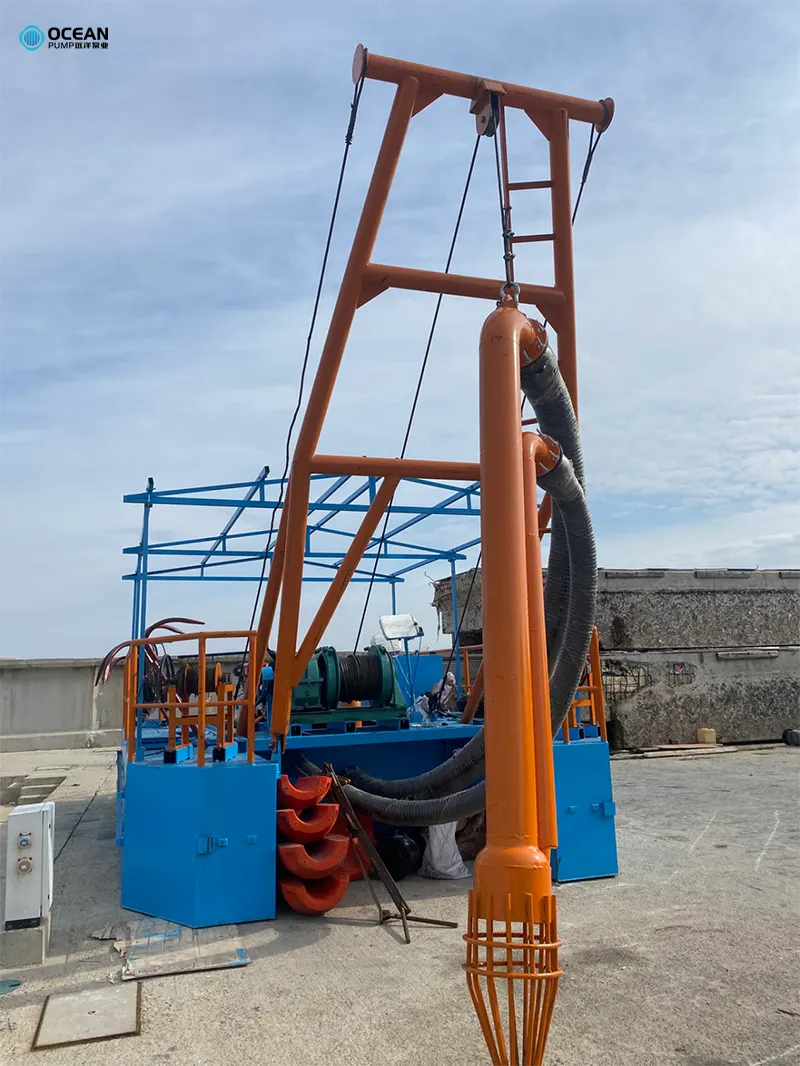

Suction Pipe and Cutter Head​

The suction pipe is a long tube that extends from the dredger to the underwater sediment. The cutter head,located at the end of the suction pipe,is a rotating mechanism equipped with sharp blades or teeth. It loosens compacted materials,facilitating the extraction of sediment by the pump.​

Discharge Pipeline​

The discharge pipeline transports the dredged material (a mixture of sediment and water) to the designated location,such as a storage area or a land reclamation site. It can be either flexible (floating hoses) or rigid (steel pipes).​

Winches and Anchoring System​

Winches and anchors are used to control the position of the dredger during operations. They allow for precise movement of the dredger and the cutter head to target specific areas of the seabed.​

Power System​

The dredger is powered by either diesel engines or electric motors,depending on its design. The power system drives the dredging pump,cutter head,and other onboard equipment.​

Control Cabin​

The control cabin houses the operator's controls for managing the dredger's operations. Modern dredgers are equipped with advanced monitoring and automation systems to ensure efficiency and safety.​

Working Principle of Sand Mining Dredgers​

Sand mining dredgers operate on the principle of hydraulic or mechanical excavation combined with suction and transportation. The working process can be divided into the following steps:​

Positioning and Anchoring​

The dredger is positioned above the target area using anchors or spuds (vertical poles that stabilize the dredger). The operator ensures that the cutter head or suction pipe is properly aligned with the dredging site.​

Sediment Loosening​

The cutter head,located at the end of the suction pipe,rotates to break up compacted sediment layers. The sharp blades or teeth of the cutter head loosen sand,gravel,or other materials,making them easier to extract.​

Suction and Pumping​

The dredging pump creates a powerful suction force that draws the sediment water mixture (slurry) through the suction pipe. The mixture is then transported to the discharge pipeline for further processing.​

Transportation of Dredged Material​

The slurry is pumped through the discharge pipeline to its final destination. Depending on the distance,booster pumps may be used to maintain pressure and ensure efficient transportation.​

Material Deposition​

The dredged material is deposited at the designated location,such as a land reclamation site,a sand processing plant,or a storage area. The water in the slurry is often separated and returned to the dredging site to minimize environmental disturbance.​

Continuous Operation​

The dredger moves systematically across the dredging area,controlled by the winch and anchoring system. This ensures uniform excavation and maximizes efficiency.​

Types of Sand Mining Dredgers and Their Variations​

Based on the dredging environment and application,sand mining dredgers come in various designs. The most common types include:​

Cutter - Suction Dredger (CSD)

Equipped with a cutter head to loosen compacted materials. Commonly used for harder sediments such as clay,gravel,or sand.​

Plain Suction Dredger​

Does not have a cutter head and relies solely on suction to extract loose materials. Suitable for soft sediments such as silt or fine sand.

Trailing Suction Hopper Dredger (TSHD)​

A self - propelled dredger that uses trailing suction pipes to collect sediment into an onboard hopper. Ideal for large - scale dredging operations,such as deepening shipping channels.​

Jet Dredger​

Uses high - pressure water jets to loosen sediment before suction. Suitable for soft to medium - hardness sediments.​

Advantages and Limitations of Sand Mining Dredgers​

Advantages​

High Efficiency: Capable of extracting and transporting large quantities of sediment in a short time.​

Versatility: Can operate in diverse environments,including rivers,lakes,coastal areas,and seafloors.​

Cost Effectiveness: Reduces labor costs by automating the dredging process.​

Limitations​

High Initial Cost: Requires significant investment in equipment and setup.​

Environmental Impact: Dredging can disrupt aquatic ecosystems and water quality.​

Maintenance: Components such as cutter heads and dredging pumps are prone to wear and require regular maintenance.​

Applications of Sand Mining Dredgers​

Sand mining dredgers are widely used in the following industries:​

Construction: Extracting sand for concrete,asphalt,and other building materials.​

Land Reclamation: Creating new land areas by depositing dredged material.​

Environmental Restoration: Removing contaminated sediment from rivers or lakes.​

Harbor and Channel Maintenance: Deepening and maintaining navigable waterways.​

Mining: Extracting minerals and aggregates from underwater deposits.​

Conclusion​

Sand mining dredgers are essential tools in a wide range of industries,providing efficient and reliable sediment extraction. Their key components,such as the cutter head,dredging pump,and discharge pipeline,work together to ensure smooth operation. By understanding their structure and working principle,operators can maximize performance while minimizing environmental impact.​

As a leader in the dredging industry,Taian Ocean Pump provides professional support and customized solutions to meet the diverse needs of clients. With a commitment to innovation and quality,Taian Ocean Pump ensures that your dredging projects are efficient,cost effective,and environmentally sustainable.​
