Detailed Guide on the Usage of Ocean-pump Submersible Sand Pump

I. Product Overview of Submersible Sand Pump

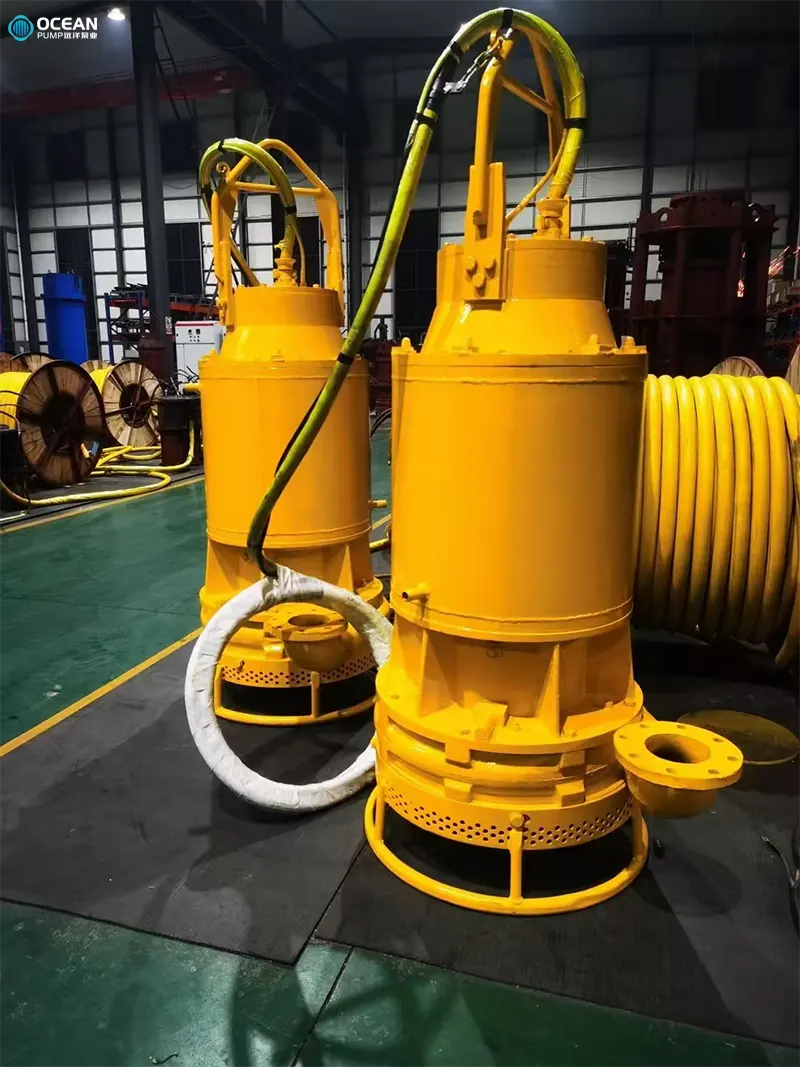

The submersible sand pump (also known as submersible sand suction pump, dredging pump, etc.) was designed by TAIAN Ocean Pump Co.,ltd in the 1990s for sand pumping in the Yellow River. After technological iterations, it is suitable for various working conditions. Its core structure includes a pump head, motor, oil chamber, and combined seal. The flow-through components are made of wear-resistant alloy (CR28) and undergo three heat treatment processes to ensure high wear resistance and passing capacity. It is widely used in metallurgy, mining, river dredging, and other scenarios, capable of transporting liquids containing solid particles such as sand, silt, and coal slag.

II. Usage Methods and Configuration Key Points in Different Working Conditions

(1) Sand Pumping/Sand Mining Scenarios

Core Requirements: Handle coarse sand, iron plate sand, etc., requiring anti-blocking and wear resistance.

1. Pump Type Selection:

• For coarse sand environments, select a large-particle submersible sand pump with thickened flow-through components made of high-chromium wear-resistant alloy.

2. Auxiliary Devices:

• Install a high-pressure water pump flushing device (flow rate 30% of the sand pump's flow, head >= 50m) to disperse sand layers; for iron plate sand, equip with electric/hydraulic reamer, and design special tooth shapes for enhanced stirring.

3. Electrical Protection:

• Support with a special control cabinet, providing protection against water ingress, overload, phase loss, and leakage to cope with motor impacts from fluctuating sand pumping concentrations.

4. Operation Tips:

• Monitor pressure and current data in real time, adjust the pump's depth and posture for optimal sand pumping efficiency.

(2) River Dredging Scenarios

Core Requirements: Handle media with garbage and silt, requiring anti-winding and efficient dredging.

1. Direct Dredging Mode:

• pump Configuration: Choose submersible sand slurry pump with a wide impeller flow channel, and install a filter screen at the pump bottom (mesh size customized based on flow diameter; double-layer screen for heavy debris).

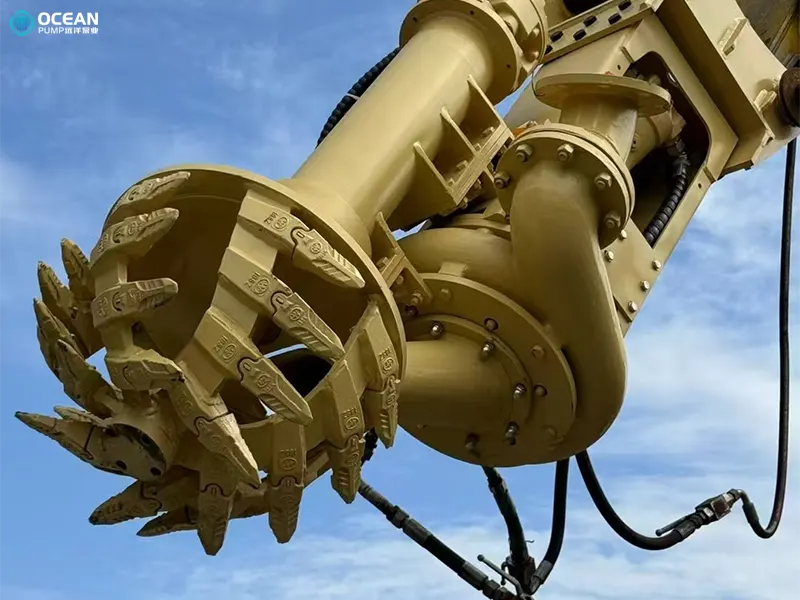

• Reamer Design: Adopt plow-shaped tooth reamers combined with high-pressure water pumps to disperse silt layers; remove the stirring impeller to avoid debris entanglement.

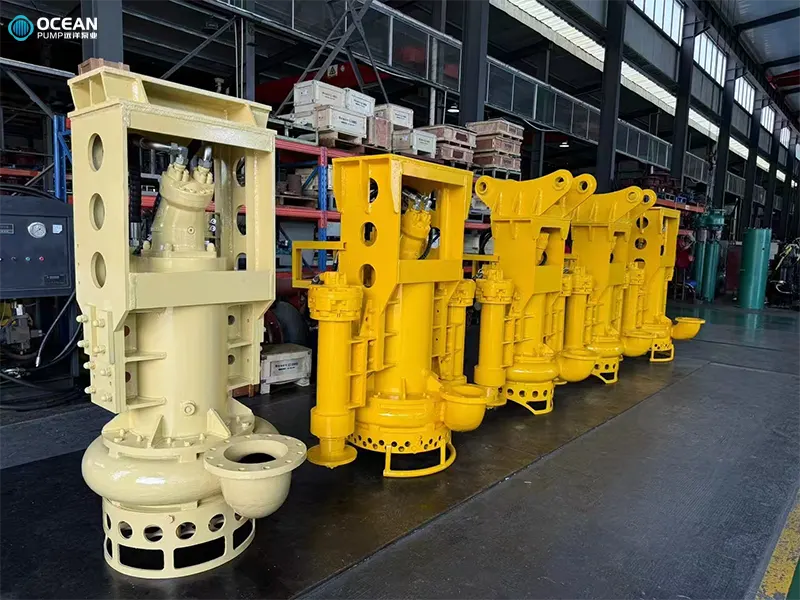

2. Dredging Mode with Excavator Collaboration:

• Power Scheme: Drive the pump using the excavator's hydraulic system to solve power shortages in remote areas.
• Device Advantages: Stirring impeller at the pump bottom + side agitators/cages to loosen compacted sediments; unique sealing device reduces mechanical seal replacement frequency; hydraulic transmission enables stepless speed regulation and overload protection, preventing motor burnout.

(3) Slag Cleaning/Slurry Transportation Scenarios

Core Requirements: Handle smelting slag, tail sand, coal slag, etc., requiring high-temperature and corrosion resistance.

1. Basic Configuration:

• Install a stirring impeller under the pump (no extra stirring device needed for normal conditions). The medium temperature should <= 60 Celsius; for higher temperatures, add a cooling cover and inject circulating water.

2. Application Scenarios:

• Smelting plants: Transport smelting slag and tail sand slurry;
• Mines/coal preparation plants: Process tail sand, coal slurry, furnace slag;
• Sewage treatment plants: Discharge sludge and sand from sedimentation tanks, etc.

(4) Construction Mud Transportation Scenarios

Core Requirements: Long-distance mud transportation, requiring high efficiency, environmental protection, and low cost.

1.System Design:

• Configure high-head sand pumps in series to form a relay pumping station system, enabling transportation over dozens of kilometers.

2. auxiliary Devices:

• High-pressure water pump (head >= 50m, flow rate 80% of the mud pump's flow);

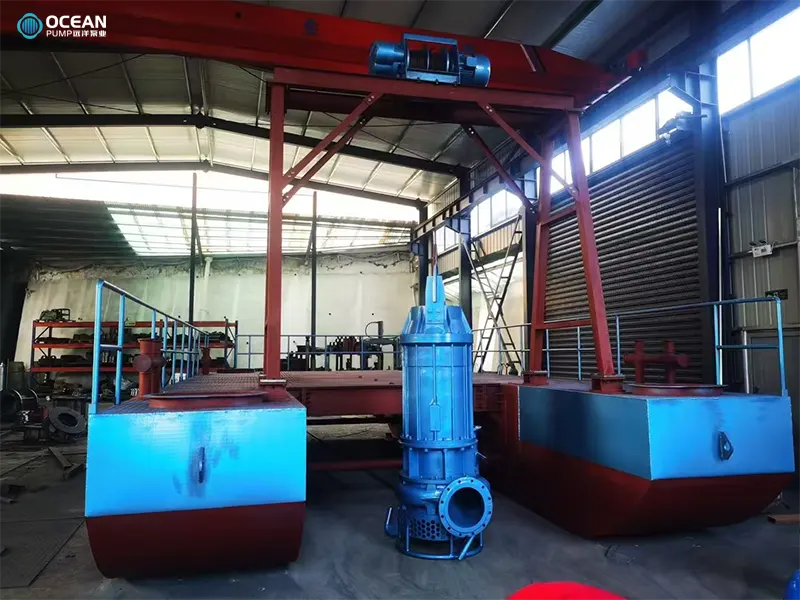

• Simple floating body to support the pump, adapting to water level changes;
• Frequency conversion system for intelligent operation, underwater work with no noise or vibration.

III. General Notes

• 1. Medium Limitations: Avoid transporting media containing flammable or explosive gases. If the temperature exceeds 60 Celsius, additional cooling is required.
• 2. installation Requirements: Select floating bodies, gantry cranes, etc., for hoisting based on working conditions to ensure appropriate submergence depth.
• 3. Maintenance: Regularly inspect wear of flow-through components and replace wear-resistant alloy parts; monitor the sealing device to prevent water leakage and motor damage.

IV. Technological Development and Service Support

Ocean Pump Industry collects equipment usage data through big data, continuously optimizing hydraulic performance and wear-resistant materials to expand application adaptability. Users can refer to thousands of successful cases. For customized solutions, contact the design team for sand pumping system design advice and on-site inspection support.

Ocean Pump Industry | Submersible Power, Paving the Future - The Technological Leader in Wear-Resistant Dredging

Core Advantages: 30 Years of Craftsmanship Shaping Industry Benchmarks

• Originating from the Yellow River, Serving the World: Since customizing the first submersible sand pump for Yellow River sand pumping in the 1990s, after 30 years of technological iteration, products cover 20+ industries including metallurgy, mining, river dredging, and construction, trusted by thousands of enterprises.
• Hardcore Technology, Peak of Wear Resistance: Flow-through components adopt exclusive CR28 wear-resistant alloy, through three heat treatment processes, wear resistance is 50% higher than ordinary pumps, and service life under strong abrasion conditions is extended by 2-3 times, breaking the industry pain point of "low-quality pumps being scrapped quickly".
• Full Working Condition Adaptation, Customized Solutions: From coarse sand pumping to river dredging, from slag slurry transportation to long-distance construction mud transportation, provide one-stop solutions of "pump type + auxiliary device + intelligent control system" according to medium characteristics (particle size, concentration, temperature), truly achieving "one pump solves one type of problem".

Why Choose Ocean Pump Industry?

• Technological Moat: Independent R&D of hydraulic models + computer system design, certified by ISO9001, each pump undergoes 12 wear tests before delivery to ensure "zero failure in underwater operations".
• Full-Cycle Service: Provides full-process support of "on-site inspection - scheme design - installation debugging - after-sales operation and maintenance", responds to failures within 24 hours, and provides free working condition optimization suggestions for user peace of mind.
• Sustainable Innovation: Relying on big data to collect equipment operation data, invests 15% of revenue in new material R&D annually, with wear-resistant alloy technology always 2-3 years ahead of the industry.

Case Witness: Pumping Power from the Yellow River to the WorldM

• Yellow River Delta Dredging Project: Customized submersible sand pump group handles 12,000 cubic meters of sediment daily, helping river dredging efficiency increase by 4 times, awarded special commendation by the Ministry of Water Resources.
• South Africa Gold Mine Slag Slurry Transportation: Corrosion-resistant CR28 alloy pump operates stably in strong acid slurry for 36 months, extending service life by 2 times compared to local brands, becoming the designated supplier for African mining.
• Xiong'an New Area Construction Mud Treatment: Long-distance pumping system achieves 20-kilometer mud zero-leakage transportation, providing core equipment support for green infrastructure.
